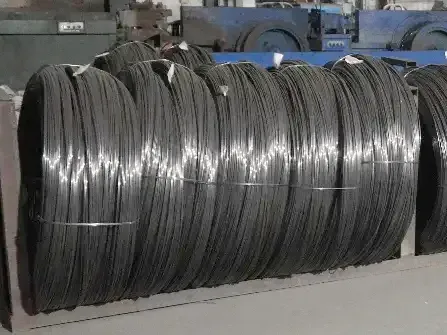

Low Carbon Cold Drawn Steel Wire is a specialized steel product manufactured by pulling hot-rolled low carbon steel rod through a series of dies at ambient temperature. This cold working process increases tensile strength, improves dimensional accuracy, and creates a smooth, uniform surface finish. With over two decades of hands-on experience in the steel wire industry, the team at Luguan understands that buyers across North America, Europe, and Southeast Asia demand consistent mechanical properties, tight tolerances, and reliable logistics.
Luguan produces low carbon cold drawn steel wires in diameters from 0.15 mm to 16.0 mm, with custom sizes available upon request. The base material is low carbon steel wire rod, typically equivalent to grades such as SAE 1006, SAE 1008, SAE 1010, Q195, and Q235. The cold drawing process reduces the wire diameter by 10% to 35% per pass, depending on the starting rod size and required final mechanical properties.
Understanding the exact product parameters is critical for engineers and procurement professionals. The table below summarizes the standard range offered by Luguan. Custom tolerances and non-standard diameters can be engineered to match specific production requirements.
The production of low carbon cold drawn steel wires involves several critical steps, each of which affects the final quality. Luguan operates a fully integrated production line with in-house rod cleaning, drawing, annealing, coating, and inspection capabilities. The process begins with hot-rolled low carbon steel wire rod, usually in diameters from 5.5 mm to 20 mm. The rod is first mechanically descaled and then pickled in dilute hydrochloric or sulfuric acid to remove residual iron oxide. After rinsing and drying, the rod is coated with a phosphate or borax carrier layer, which acts as a lubricant reservoir during drawing.
Drawing is performed on straight-line or bull block drawing machines, depending on the target diameter. The wire passes through tungsten carbide or diamond dies, with each pass reducing the cross-sectional area by approximately 15% to 25%. For fine wire below 0.5 mm, multi-hole wet drawing machines are used with liquid lubricants to control heat generation and maintain surface quality. After drawing, the wire may be stress-relief annealed in a controlled atmosphere furnace to restore ductility or to achieve a specific temper. Continuous in-line eddy current testing detects surface defects, while tensile testing ensures mechanical property compliance.
Low carbon cold drawn steel wire is one of the most versatile steel products in the market. Because it combines moderate strength with excellent ductility and weldability, it is used in a wide range of industrial and consumer applications. Luguan supplies wire to manufacturers in the following sectors.
Selecting a reliable supplier for low carbon cold drawn steel wire requires more than comparing price lists. Luguan has built its reputation on consistent product quality, fast lead times, and transparent communication. Our factory operates 24 hours a day during peak seasons, with a monthly production capacity of 8,000 metric tons. Every batch is tested for tensile strength, elongation, surface condition, and dimensional accuracy before shipment. We maintain a large inventory of standard diameters so that small trial orders can be dispatched within 7 to 10 days. For custom specifications, the typical lead time is 20 to 30 days.
Luguan also offers value-added services such as cut-to-length straightening, chamfering, end forming, and custom coating. Our technical team can help you select the right grade and temper based on your production equipment and end-use requirements. We provide free samples for qualified buyers, along with a detailed test report and a recommended storage guide. With export experience to more than 40 countries, Luguan understands the documentation and compliance needs of international customers.
Q: What is the standard coil weight for export orders?
A: The standard coil weight for export orders depends on the wire diameter. For fine wire from 0.15 mm to 0.80 mm, coils are usually 5 kg to 50 kg on spools to prevent tangling. For medium wire from 0.80 mm to 3.00 mm, the standard coil weight is 100 kg to 500 kg. For larger diameters from 3.00 mm to 16.00 mm, coils or carriers range from 800 kg to 2,000 kg. Luguan can also produce custom coil weights to match your automatic feeding equipment. Every coil is secured with steel straps and wrapped in anti-rust paper or plastic film.
Q: How do you ensure the wire diameter stays within tolerance during production?
A: Luguan uses continuous laser micrometers at each drawing block to monitor diameter in real time. The measurement system samples the wire diameter hundreds of times per second and compares the readings against the specified tolerance band. If the diameter drifts beyond the set limits, the system automatically slows the drawing speed and alerts the operator. In addition, final inspection includes manual micrometer checks on at least three points per coil, and the results are recorded on the mill test certificate. This dual approach ensures that every shipment meets the agreed dimensional tolerance.
Q: What documentation is provided with each shipment of low carbon cold drawn steel wires?
A: Every shipment from Luguan includes a commercial invoice, packing list, mill test certificate, certificate of origin, and bill of lading. The mill test certificate contains the heat number, chemical composition, diameter measurements, tensile strength, yield strength, elongation, and surface condition for each coil or spool. For customers in regulated markets, we can provide EN 10204 3.1 or 3.2 certification, CE marking, and third-party inspection reports from SGS, BV, or Intertek. All documents are supplied in PDF format before shipment, and original hard copies are sent with the cargo.
