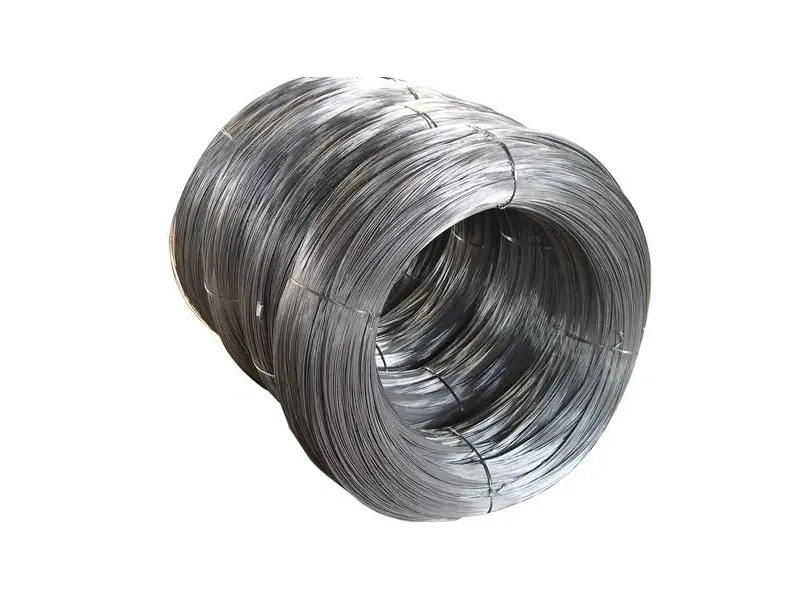

In industries where repeated deflection, high cyclic loads, and long service life are non-negotiable, material selection becomes the foundation of reliability. Spring Steel Wires is a medium-to-high carbon steel wire engineered specifically for springs, wire forms, retaining rings, clips, and other load-bearing components. Luguan supplies this product in a wide diameter range with tightly controlled tensile strength, surface finish, and packaging options to meet demanding production requirements.
Spring Steel Wire is produced from carefully selected steel billets and processed through patenting, cold drawing, and often oil tempering to achieve the required combination of strength, ductility, and fatigue resistance. The material is widely used in automotive suspension systems, industrial machinery, agricultural equipment, consumer electronics, and precision instruments.
This vertically integrated approach allows Luguan to offer custom wire solutions with shorter lead times and better lot-to-lot consistency. The plant operates under ISO 9001 and IATF 16949 quality management systems, and all inspection records are traceable to heat number and coil number.
Luguan works closely with spring manufacturers to match the correct wire grade and finish to each specific application, reducing failure risk and optimizing production efficiency. For applications involving elevated temperatures or corrosive environments, alloy grades and special coatings can be recommended based on actual service conditions.
Hard-drawn wire is cold drawn to increase tensile strength through work hardening, but it retains higher internal stress and lower ductility compared to oil-tempered wire. Oil-tempered wire is heated to an austenitizing temperature, quenched in oil, and then tempered to achieve a more stable microstructure with higher fatigue life and better resistance to permanent set. For highly stressed dynamic springs, oil-tempered wire is generally recommended. Luguan supplies both types and can advise based on the specific spring design and service load.
For automotive valve springs, a chromium-vanadium or silicon-chromium alloy steel wire is usually selected because it provides high fatigue strength, excellent sag resistance at elevated temperatures, and good toughness. Common grades include ASTM A231 and EN 10270-2 VDC or VDSiCr. Luguan can supply these grades with tightly controlled non-metallic inclusion content and specialized surface preparation for shot peening compatibility.
Diameter variation directly affects spring index, free length, and load consistency. If the wire diameter varies significantly within a coil, the coiling machine may produce springs with inconsistent pitch and load characteristics. Tight diameter tolerance also reduces die wear and ensures uniform feed speed. Luguan provides precision tolerance wire with out-of-roundness below 50% of the standard tolerance, which helps maintain stable spring dimensions in automatic coiling lines.
Yes. Luguan can provide small coils from 5 kg to 50 kg for prototyping and pilot production. These coils are wound on small plastic spools or coils without compromising the straightness and surface quality. For prototype development, Luguan also offers cut-to-length straight bars from 300 mm to 4,000 mm with chamfered ends if required.
Bright drawn wire is usually the preferred base for electroplating because the clean, smooth surface allows uniform plating adhesion and reduces pre-cleaning requirements. However, phosphate coated wire can also be plated after thorough cleaning. Customers should inform Luguan about the final plating process so that the appropriate drawing lubricants and surface condition can be selected from the start.
For humid or marine environments, Luguan recommends zinc coated wire or oiled bright wire packed with vapor-phase inhibitor film and sealed in moisture-resistant shrink wrap. Coils should be stored indoors on pallets away from direct floor contact. If storage time exceeds six months, periodic inspection and re-oiling may be necessary. For critical applications, Luguan can also supply wire with a temporary rust-preventive oil that is easy to remove before coiling.
