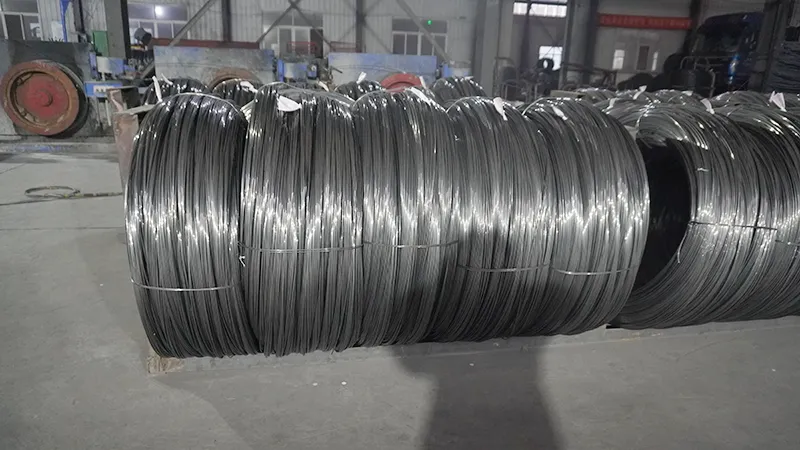

77B Prestressed Concrete Steel Wire

In many precast concrete applications, the selection of prestressed steel wire is not only about achieving the highest strength level. Production efficiency, material consistency, and overall project cost are equally important factors, especially for large-volume concrete components.

Luguan 77B Prestressed Concrete Steel Wire is developed from SWRH77B high-carbon steel wire rod and manufactured through multi-pass cold drawing and stress-relieving tempering. Compared with higher carbon grades, 77B steel wire offers a balanced combination of strength, ductility, processing stability, and cost efficiency, making it suitable for conventional prestressed concrete applications.

With smooth, spiral ribbed, and indented surface options available, the wire can meet different bonding requirements in precast concrete production, including concrete poles, floor slabs, wall panels, water pipes, and other cement-based components.

Why 77B Steel Wire Is Chosen for Conventional Prestressed Components

For many precast concrete manufacturers, the ideal reinforcement material is not always the highest-strength option. A suitable steel wire needs to match the actual working conditions of the component while maintaining stable production performance.

77B prestressed steel wire is widely used because it provides reliable mechanical properties without unnecessary material cost increases.

The steel grade offers good drawability during processing, allowing manufacturers to achieve consistent wire dimensions and stable mechanical performance. Its balanced carbon content also helps maintain a practical combination of tensile strength and ductility, which is important for continuous production environments.

For projects such as precast slabs, concrete poles, and standard cement products, 77B wire provides a dependable reinforcement solution where production efficiency and cost control are key considerations.

Technical Specifications

Customized diameters, surface types, packaging methods, and technical documents are available according to customer requirements.

The Material Characteristics Behind Stable Processing Performance

The performance of prestressed steel wire depends greatly on the quality and structure of the original wire rod.

Luguan 77B Prestressed Concrete Steel Wire uses SWRH77B high-carbon wire rod with a refined metallurgical structure and good drawing performance. The material is processed through controlled cold drawing to increase strength while maintaining suitable flexibility for manufacturing.

After drawing, stress-relieving tempering is carried out to reduce internal stress generated during deformation. This process improves dimensional stability and helps the finished wire maintain more consistent performance during tensioning and long-term service.

The result is a wire that performs reliably in regular prestressed concrete production without requiring excessive material strength for applications where it is not necessary.

Balanced Mechanical Performance for Precast Manufacturing

77B prestressed steel wire is designed around a balance between strength, stability, and manufacturing practicality.

Its tensile strength grades commonly include 1570MPa and 1670MPa, which are suitable for many conventional prestressed concrete components.

During production and installation, the wire provides stable elastic behavior, helping manufacturers achieve consistent tension control. Its uniform mechanical properties along the coil also support continuous processing and reduce variation between different production batches.

For precast factories producing large quantities of standard concrete products, this consistency can directly improve production efficiency.

Controlled Relaxation for Long-Term Structural Performance

Although 77B wire is mainly selected for conventional prestressed applications, long-term stress stability remains an important requirement.

Through stress-relieving treatment after cold drawing, Luguan 77B Prestressed Concrete Steel Wire achieves low relaxation performance. The low relaxation grade can reach a 1000-hour relaxation rate of ≤2.5%, helping reduce prestress loss during service.

This characteristic supports stable performance in concrete components where long-term force retention is required.

Surface Options According to Concrete Bonding Requirements

Different concrete products have different requirements for steel-concrete interaction.

Luguan supplies 77B prestressed steel wire in several surface configurations.

Smooth wire is commonly used in standard prestressing systems where conventional bonding conditions are sufficient. It provides a uniform surface and stable processing characteristics.

Spiral ribbed wire is suitable for applications requiring stronger mechanical interaction between steel wire and concrete. The rib structure improves anchorage performance and helps transfer prestressing force more effectively.

Indented wire provides another surface solution for improving bonding performance in specific precast applications.

Typical Applications

77B prestressed concrete steel wire is widely used in projects where reliable reinforcement performance and reasonable material cost are both important.

Concrete Poles

Concrete poles require reinforcement materials that can maintain strength while supporting efficient production.

77B wire provides stable mechanical properties for medium and small prestressed concrete pole manufacturing.

Precast Floor Slabs and Wall Panels

Industrialized construction relies heavily on consistent material supply.

The stable quality and practical strength level of 77B wire make it suitable for precast floor slabs, wall panels, and similar building components.

Ordinary Pressure Water Pipes

For conventional prestressed concrete pipes, reinforcement materials need to provide reliable stress performance without excessive material cost.

77B wire offers a suitable balance for these applications.

Small Precast Cement Products

For smaller concrete components produced in large quantities, production efficiency and cost control are important factors.

77B wire provides a practical reinforcement option for these applications.

Production Consistency for Large-Volume Orders

For prestressed concrete manufacturers, stable batch quality is often as important as product specifications.

Luguan focuses on controlling key production factors from raw material inspection to finished wire testing. The company monitors chemical composition, wire diameter accuracy, mechanical performance, surface quality, and coil consistency before shipment.

This approach helps customers maintain stable production conditions when using large quantities of prestressed steel wire.

FAQ

What makes 77B prestressed steel wire different from 82B steel wire?

77B and 82B are both high-carbon prestressed steel wire materials, but 77B is often selected for applications where balanced performance and cost efficiency are important, while 82B is commonly used for higher strength requirements.

What applications use 77B prestressed concrete steel wire?

It is commonly used in concrete poles, precast floor slabs, wall panels, ordinary pressure pipes, and other conventional prestressed concrete products.

Does 77B steel wire have low relaxation performance?

Yes. The low relaxation grade can achieve a 1000-hour relaxation rate of ≤2.5% after proper processing and stabilization treatment.

What surface types are available for 77B wire?

Luguan supplies smooth, spiral ribbed, and indented surface types according to different concrete bonding requirements.

Can Luguan provide customized 77B prestressed steel wire?

Yes. Customized diameters, surface designs, coil specifications, and technical documents can be provided according to customer needs.
